Dakota NDT R9 Sonic Tester
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measurement range:
- PE: 0.025 to 36in (0.63 to 914.4mm)
- PE (casted materials): 0.05 to 1.5in (1.27 to 38.1mm)
- Resolution: 0.001in (0.01mm)
- Velocity range: 0.0120 to 0.7300 inches/μs (305 to 18,542 meters/sec)
- Pulse repetition frequency: 200Hz
- Display update rate: 10Hz
- High speed scan: 100 readings per second
- Dual element transducer:
- 1 to 10 MHz
- Locking quick-disconnect LEMO connectors
- 4-foot cable
- Single point, two point, and target velocity calibration options
- Multi-function, 7-segment, 0.5in (12.7mm) digit heights display
- Repeatability / stability indicator
- Factory calibration traceable to NIST and MIL-STD-45662A
- 5-year limited warranty

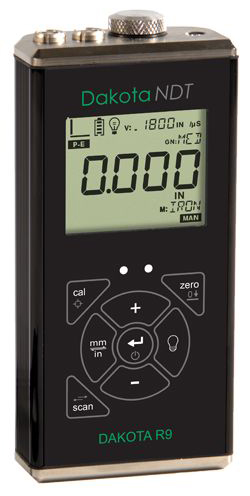

The Dakota NDT R9 sonic tester has been designed for the racing industry, and is commonly used to measure the thickness of cylinder walls, head ports, decks, chassis tubing, body panels, and windshields. The R9 tester features a dual element style of probe with the ability to locate corrosion or deterioration on the blind surface in the water jacket area prior to boring a cylinder or port.
The high-speed scan feature takes 100 measurements per second to save time when scanning a complete cylinder. The user simply drags the probe from the bottom of the cylinder, at a given clock position in the cylinder, up to the deck area to locate the minimum thickness found. The scan can then be switched off, and the user can find the exact location of the minimum thickness.
The R9 sonic tester has three material calibration options (single point, two point, and target velocity) for increased accuracy. Cylinder wall mapping software is available for manually creating reports.
