Rosemount 0085 Pipe Clamp Sensor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Temperature range:
- -58 to 572°F (-50 to 300°C) silver tip
- -328 to 572 °F (-200 to 300°C) nickel tip
- .5 to 48in (22 to 1219mm) pipe sizes
- X-well technology
- Single or dual element sensor
- Class A optional
- Assemble to transmitter option
- IP68 and NEMA 4X protection
- Spring loaded adapter option

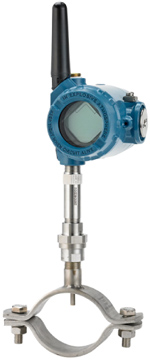

The Rosemount 0085 pipe clamp sensor has a non-intrusive design for fast and easy temperature measurement in piping applications. The platinum RTD temperature sensors feature silver or nickel tip material. Integrated temperature assemblies provide time and cost savings. The direct mount assembly has Rosemount 648 Wireless with Rosemount X-well technology to provide accurate process temperature without requiring a thermowell or process penetration.
The Rosemount pipe clamp platinum RTD Sensors are highly linear and have a stable resistance versus temperature relationship. They are primarily used in industrial environments where high accuracy, durability, and long-term stability are required, and are designed to meet the most critical parameters of international standards: DIN EN 60751/IEC 751 1983 incorporating Amendments 1 and 2.
A direct mounting configuration allows heat from the process, aside from ambient temperature variations, to transfer from the pipe clamp to the transmitter housing. If the expected pipe surface temperature is near or above the transmitter specification limits, consider using additional extension length or a remote mounting configuration to isolate the transmitter.
